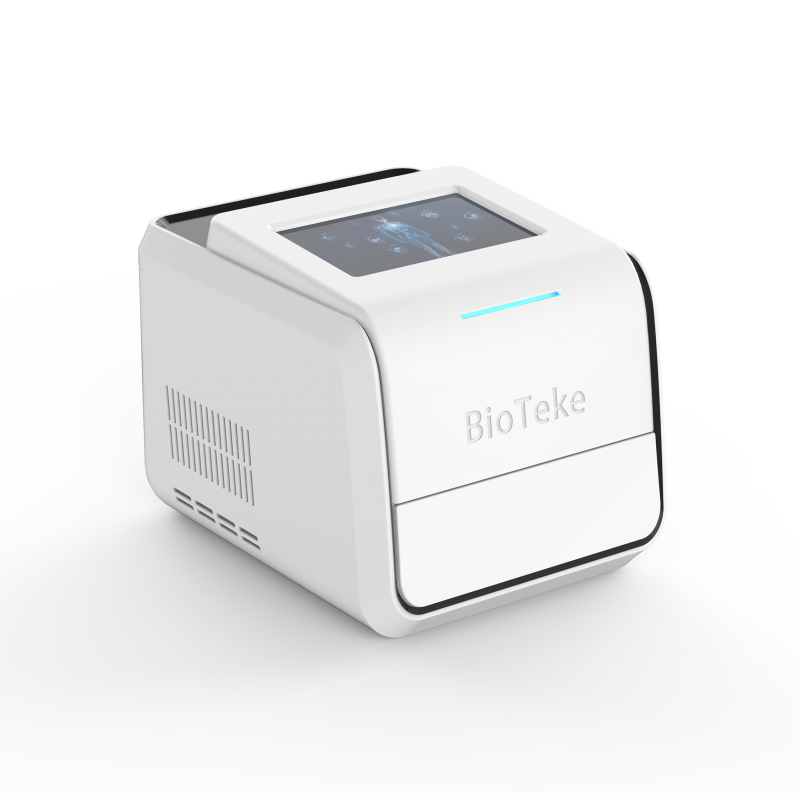

BTK-3D
BioTeke
Research Use Only
| Parameters | Value |
| Sample capacity | 16*0.2mL PCR tube, compatible with single tube or 8-strip tubes. |
| Wavelength of excitation and detection light |
|
| Dual channel | F1: FAM, SYBR Green I. F2: VIC, HEX, TET, J0E, TAMRA, CY3, NED. |
| Fluorescence transmission method | High temperature resistant optical fiber |
| Temperature control range | 4~99℃ |
| Heating rates | Max. 5℃/S；Ave. 3.2℃/S |
| Cooling rates | Max. 3.5℃/S；Ave. 2.8℃/S |
| Temperature control accuracy | ±0.1℃ |
| OS | Touch screen + patented software |
| Reaction volume | 20~120uL |
| Data output | Excel/PDF/print |
| Dimension(L*W*H) | 360*285*190mm, 4.0kg |
Bright and steady-state LED+High sensitivity photodiode+Optical signal filtering technology→ Stability and uniformity of optical signals.
High temperature resistant optical fiber+Bottom fluorescence collection→ No edge effect, better repeatability of experimental results.
Open platform, compatible with multiple brands of PCR kits.
Can be connected to a thermal printer to print the report directly.
Portable design, suitable for POCT and mobile detection.
Integrated machine

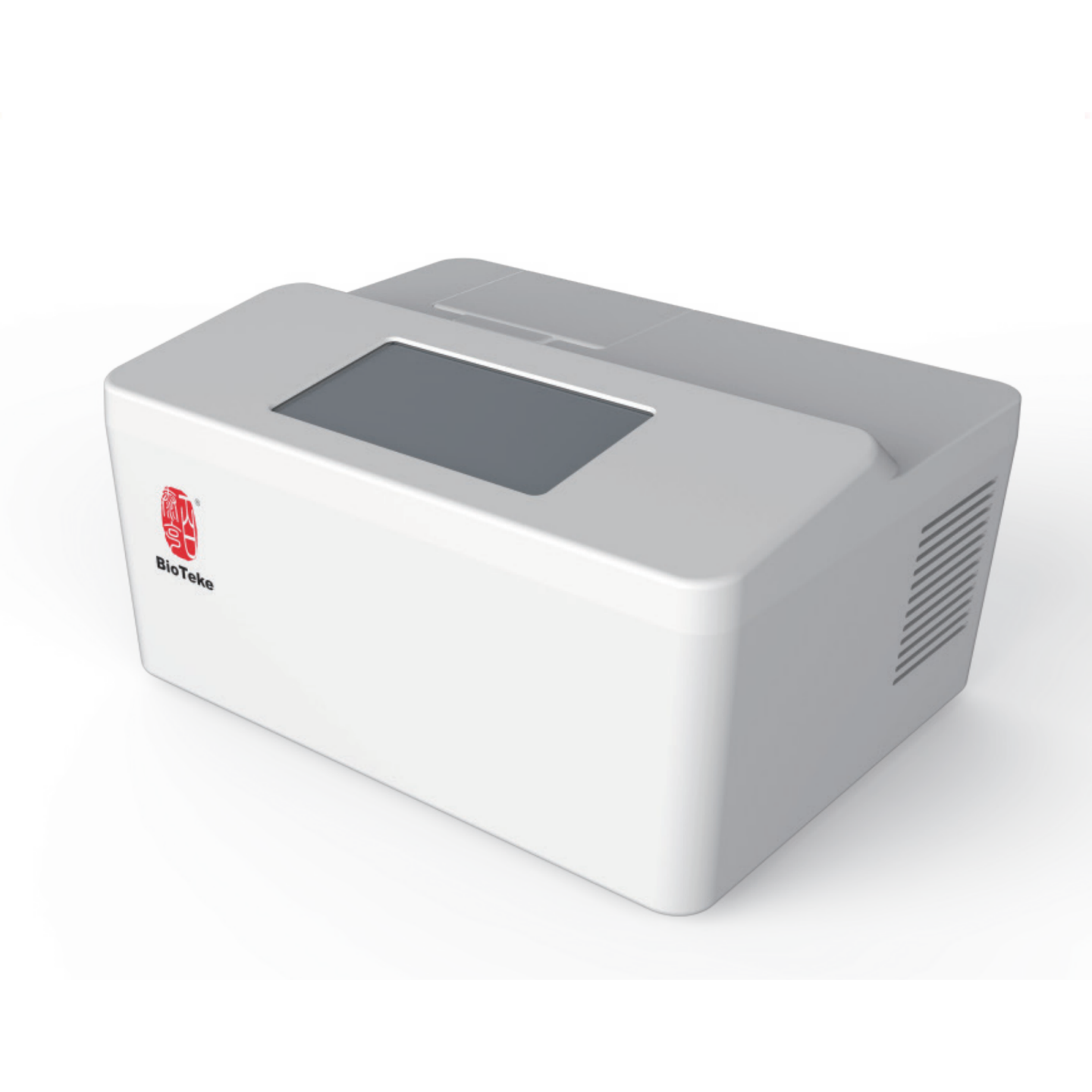

Fast pcr machine
