Fully Automatic Nucleic Acid Extraction And Detection Integrated Machine BTK-16

  • Nucleic Acid Extraction & Detection Integrated Device.
  • Fully Automatic Operation System.
  • 16 Target Detections.
  • Magnetic Bead Method.
  • Open Platform.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • BTK-16

  • Bioteke


Fully Automatic Nucleic Acid Extraction And Detection Integrated Machine



Introduction

The BTK-16 is a fully automatic nucleic acid amplification rapid detection device.

The machine integrates nucleic acid extraction, PCR amplification, and fluorescence detection.

The entire molecular diagnosis process takes only 90 minutes.

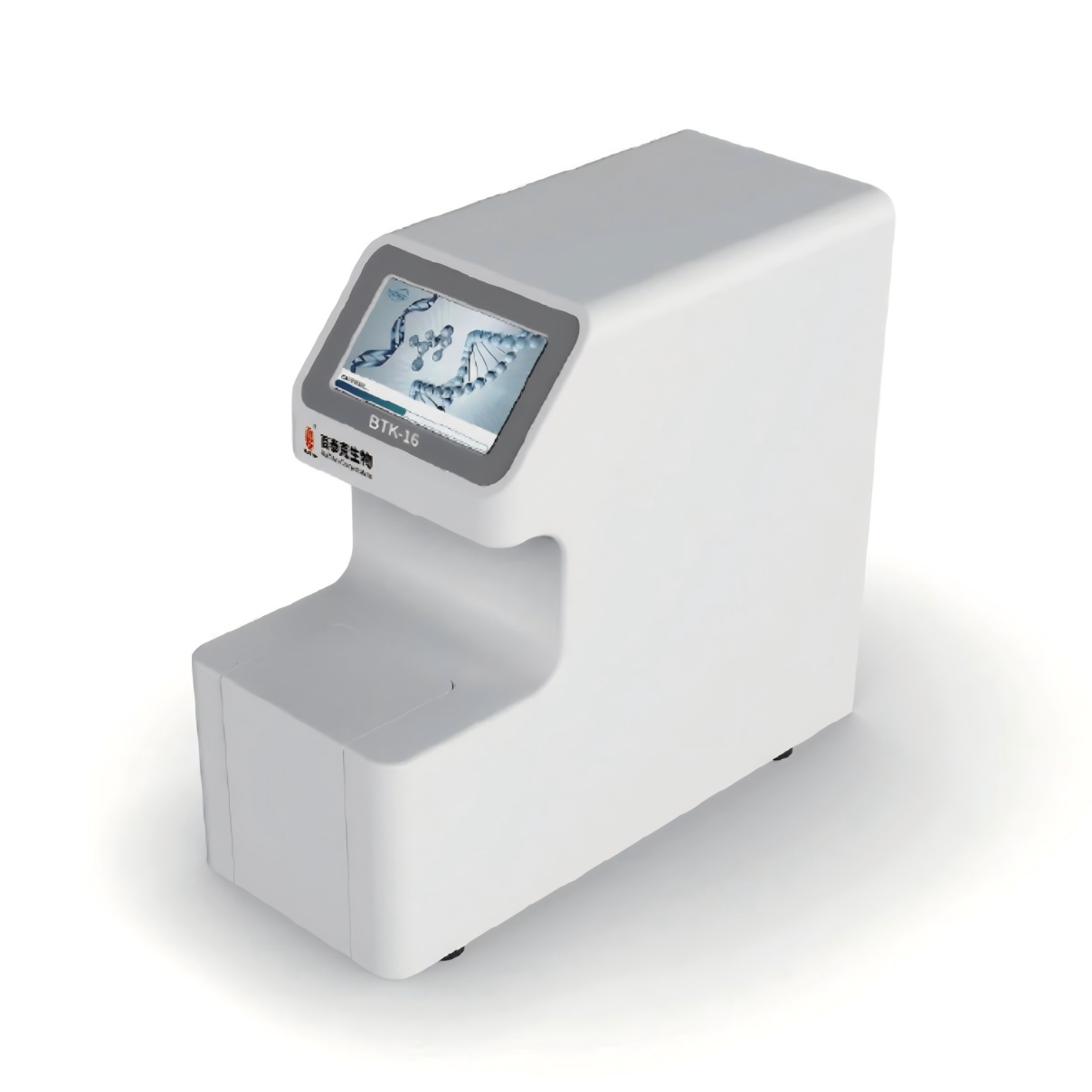

nucleic acid extractor (2)

BTK-16

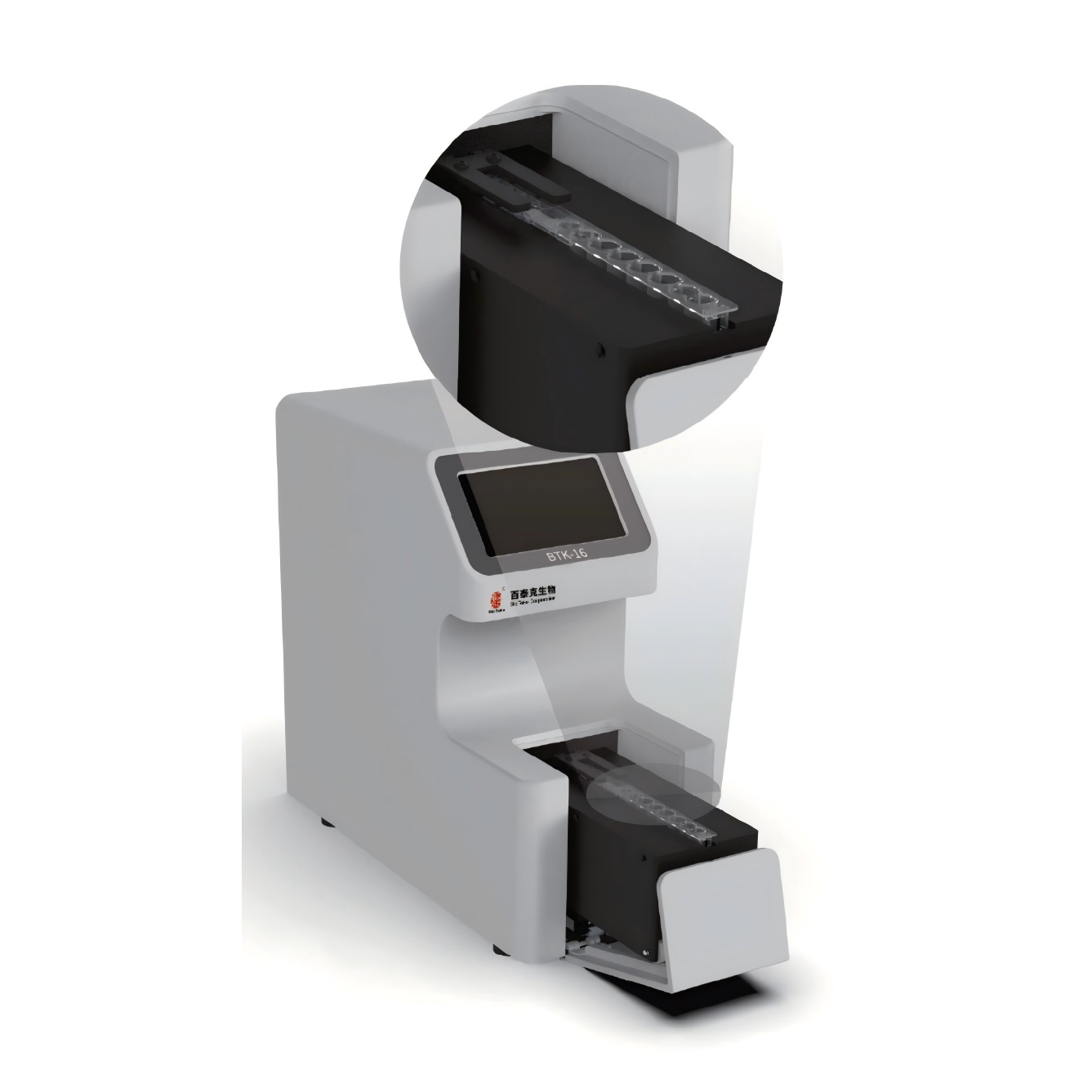

nucleic acid extractor (1)

BTK-16 Workspace


Features
  • POCT: One-site nucleic acid extraction and detection.

  • Efficient: Fast detection speed.

  • Portable: Small in size, can be placed in a biosafety cabinet.

  • Unique: A patented-designed disposable reagent cartridge, reducing the cost of comsumables.

  • Compatibility: Open platform, compatible with different reagent systems.

  • Multi-target: Up to 16 targets detection.

  • Pollution Control: Built-in HEPA filter and UV lamp.

  • One-stop diagnosis: Simply add the sample to automatically extract nucleic acid and perform PCR amplification testing.

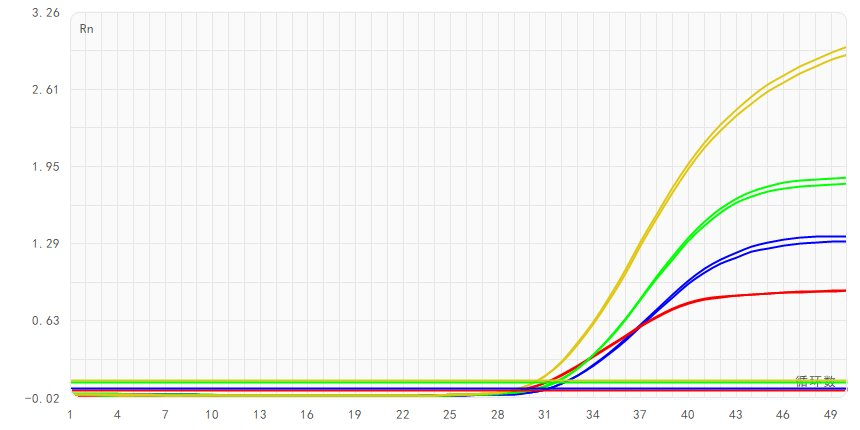

btk-16 test data

Multi-target detection

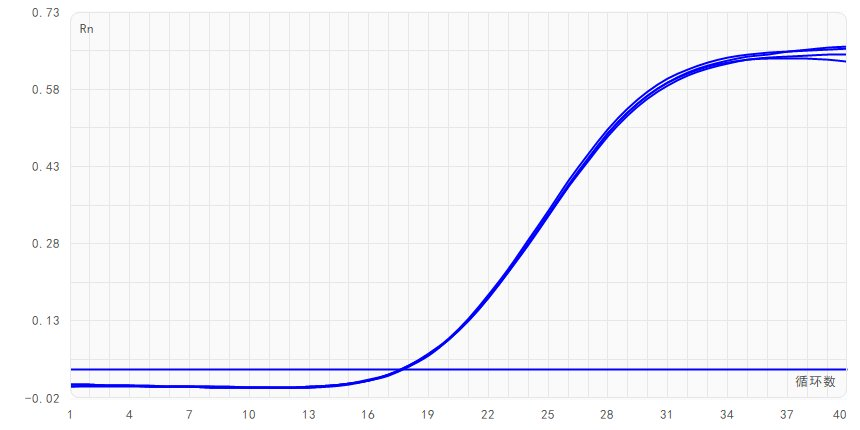

repeatability

Excellent repeatability



Specifications
PERFORMANCE
PARAMETER
Detection throughput 1 person
Detection targets Up to 16 targets
Nucleic acid extraction method Magnetic bead method
Sample volume ≤500uL
Temperature control accuracy ±0.2℃
Maximum PCR ramping rate 6℃/s
Fluorescence detection channels 4
Supported dye types FAM/SYBR Green, VIC/JOE/HEX/TET, ROX/Texas Red, Cy5/LIZ
Detector SiPMT
Excitation wavelength 455-650nm
Emission wavelength 500-720nm
Pollution control Built-in HEPA filter and UV disinfection lamp
Data output Supports WIFI, Bluetooth
Other functions Barcode scanning, printer (optional)
Instrument dimensions 155*353*330mm, 6Kg
