Human Papillomavirus(HPV) Genotyping Detection Kit PR2026-HP01(Fluorescence PCR Method)

Human Papillomavirus(HPV) Genotyping Detection Kit

FOR PROFESSIONAL USE ONLY

A. Intended Use

       The kit is used for in vitro qualitative genotyping detection of high-risk human papillomavirus(HPV) and low-risk human papillomavirus(HPV) in human vaginal swabs and cervical exfoliated cells.

       HR HPV Types: 16,18,26,31,33,35,39,45,51,52,53,56,58,59,66,68,73,82.

       LR-HPV Types:  6,11,40,42,43, 44,54,61.

B. Principle

       This product is a multiplex fluorescent probe-based Taqman® qPCR assay system.

       This kit is a fully premix freeze-dried system. Taq enzyme, UDG enzyme, reaction buffer, specific primers and probes required for amplification are all lyophilized in PCR tubes.

       Detection can be performed directly after adding dissolving solution and extracted nucleic acid.

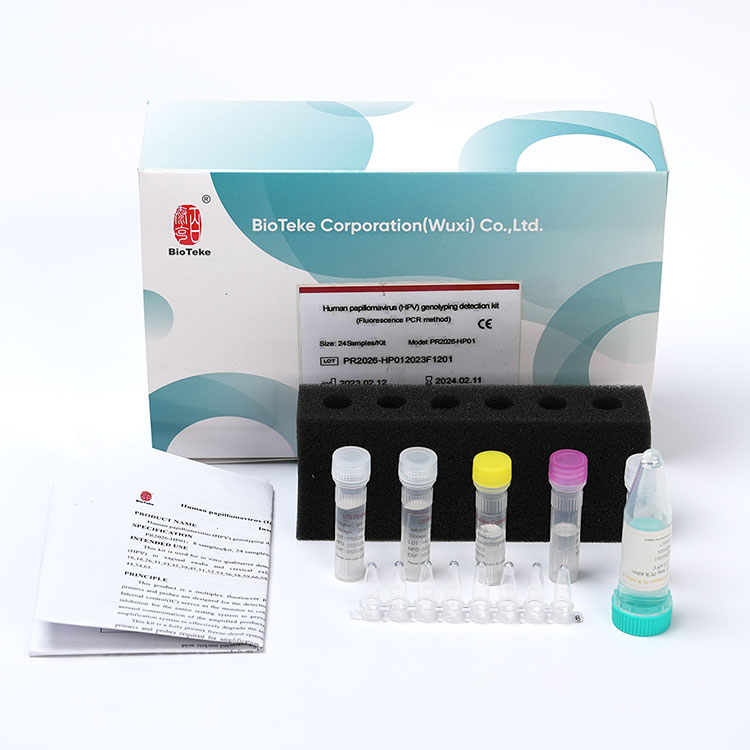

C. Specification(PR2026-HP01)

Components	8 tests/kit	24 tests/kit
HPV Lyophilized Reagent	8×7 strip tubes	24×7 strip tubes
HPV Lysis Buffer	1 mL×1 tube	5 mL×1 tube
HPV Positive Control	400 μL×1 tube	400 μL×1 tube
HPV Negative Control	400 μL×1 tube	400 μL×1 tube
Dissolving Solution	1 mL×1 tube	1 mL×3 tubes

Location	FAM	VIC/HEX	ROX	CY5
Well 1	HPV type 16	HPV type 18	HPV type 26	Internal control(IC)
Well 2	HPV type 31	HPV type 33	HPV type 35	HPV type 39
Well 3	HPV type 45	HPV type 51	HPV type 52	HPV type 53
Well 4	HPV type 56	HPV type 58	HPV type 59	HPV type 68
Well 5	HPV type 66	HPV type 73	HPV type 82
Well 6	HPV type 6	HPV type 11	HPV type 40	HPV type 42
Well 7	HPV type 43	HPV type 44	HPV type 54	HPV type 61



Other HPV Kits

Model Name	Contained Well	Targets
PR2026-HP01	Well 1 to Well 7	High-risk HPV includes type 16,18,26,31,33,35,39,45,51,52,53,56,58,59,66,68,73,82 and low-risk HPV includes type 6,11,40,42,43, 44,54,61.
PR2026-HP02	Well 1 to Well 5	High-risk HPV includes type 16,18,26,31,33,35,39,45,51,52,53,56,58,59,66,68,73,82
PR2026-HP03	Well 1 to Well 4	High-risk HPV includes type 16,18,26,31,33,35,39,45,51,52,53,56,58,59,68
PR2026-HP04/HP05/HP06	Free combination	Detection target can be self-selected.

D. Product Advantage

1. Convenient & Fast:

       The freeze-drying system with one-step release, the operation steps are extremely simple, and the training threshold is low.

2. Sensitive & Accurate:

       This kit uses Taqman® qPCR method, which has good sensitivity (1000copies/mL), strong specificity and high accuracy.

3. Flexible target:

       The kit covers all high-risk HPV types, and targets can be customized in any combination.

4. Easier screening:

       This kit is convenient for female gynecological disease screening and can be used together with STI screening kit,which is more suitable for female health examination/pregnancy/premarital medical examination.

E. Operation Process

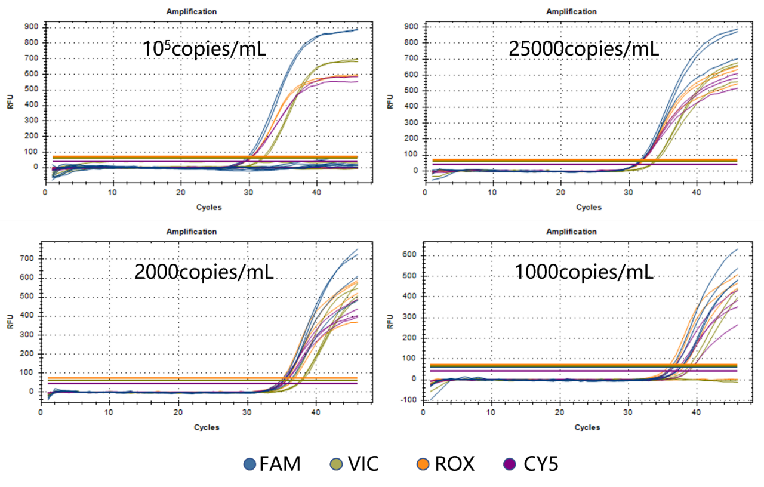

F. Amplification Plot
